Advantages:
- High Internet speed: The Olax AX9 B router supports speeds of up to 300 Mbps, which is significantly higher than the standard 150 Mbps that most other 4G routers offer.
- Reliable backup connection: The device automatically switches from cable Internet to mobile 4G in the event of a power outage due to the presence of an RJ45 WAN port and support for SIM cards.
- Autonomous operation: Thanks to the built-in 4000 mAh battery, the router can work without connecting to the power grid, which is especially important during frequent power outages.
- Optimum signal in suburban areas: Two Mobile Guard antennas with a gain of up to 10 dBi ensure stable Internet even in places with weak coverage.
Description of components:
Olax AX9 B router: Olax AX9 B is a powerful 4G LTE router that provides Internet speed up to 300 Mbps. The router supports all common 4G LTE frequencies in Ukraine (900/1800/2100/2600 MHz), which ensures a stable connection both in urban and suburban conditions. The built-in 4000 mAh battery allows the router to work autonomously during power outages. The device has an RJ45 WAN port for connecting to wired Internet and automatic switching to mobile Internet via a SIM card in the absence of power supply.

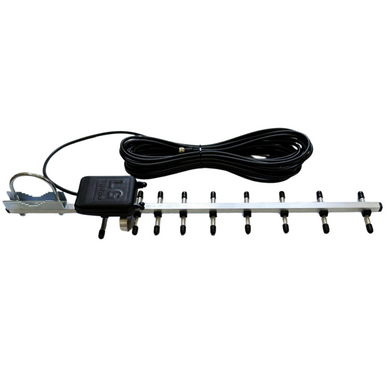

Mobile Guard LTE Band 3 1800 MHz 10dBi Antennas: These high-quality, single-band antennas are designed to enhance fourth-generation mobile Internet, providing stable communications even in areas with weak coverage. They are ideal for use in both urban and suburban areas, allowing you to connect to the Internet at a distance of up to 10 km from the nearest base station. The antennas operate in the 1800 MHz band (Band 3), which is optimal for Ukrainian mobile operators such as Kyivstar, Vodafone and Lifecell. By amplifying the signal up to 10 dBi, they provide a significant improvement in the quality of communication. The antennas are made of anodized aluminum and ASA plastic, which guarantees their durability and resistance to atmospheric influences. The antennas are supplied with 10-meter Mobile Guard RG58 U64 50 Ohm coaxial cables with F-connectors, already connected to the antennas. Antennas are installed on a pole or mast at a distance of about 50 cm from each other and directed to one tower.
SMA adapters: The kit includes SMA adapters that ensure a reliable connection of the antennas to the router, contributing to the stable operation of the network.
Installation:
Installation of the antenna:
Install the antennas on a pole or mast at a distance of about 50 cm from each other, directing them to one operator's tower.
Secure the antennas with clamps.
Connecting to the router:
Connect the F to SMA adapters to the ends of the coaxial cables built into the antennas.
Connect the SMA adapters to the antenna outputs of the router.
Antenna settings:
Turn on the router and go to its WEB interface to check the signal level.
Slowly change the direction of the antennas to achieve the maximum signal level in the web interface of the router.
After reaching the optimal signal level, fix the antennas permanently.
Recommendations for use:
This Internet kit is recommended for use in suburban conditions as a backup option during power outages. Thanks to the high speed of data transmission and reliable backup connection, the set provides uninterrupted access to the Internet for work, study and entertainment.
