A compact and easy-to-assemble and configure solution for accessing high-speed 4G LTE Internet in the field.
The Mobile Guard external antenna, optimized for operation at 900 MHz, provides up to 10 dBi signal amplification. It works effectively at a distance of up to 20 km from base stations, which allows users to enjoy stable Internet in remote locations. The antenna connects to the Olax MT80 4G Wi-Fi router using a 10-meter Mobile Guard RG-58 50 Ohm coaxial cable that is already connected to the antenna. At the other end of the cable, an F-connector is installed to connect to the antenna adapter F on CRC9.
Mobile Guard RG-58 coaxial cable:
- Length: 10 meters
- Impedance: 50 ohms
- Connectors: F-connector at the end of the cable to connect to the antenna adapter

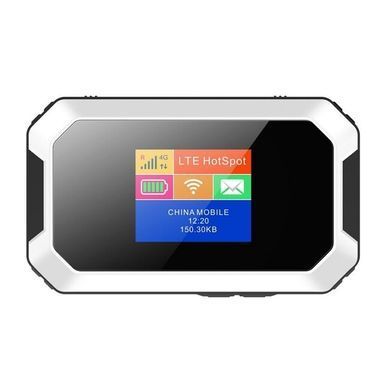

4G Wi-Fi router Olax MT80:
The Olax MT80 router works with all GSM operators in Ukraine, providing a data transfer speed of up to 150 Mbit/s in 4G LTE networks. It also supports 900 MHz (Band 8), 1800 MHz (Band 3) and 2600 MHz (Band 7) standards. Thanks to the battery with a capacity of 3000 mAh, the router can work autonomously for up to 10 hours, which makes it ideal for field conditions.
The main characteristics of the router:
- 4G LTE speed up to 150 Mbps
- Distribution of Wi-Fi network at a distance of up to 15 meters for 10 users
- 3000 mAh battery with up to 10 hours of autonomy
- One connector for connecting an external 4G Mobile Guard 900 or 1800 MHz antenna
Connection and settings:
- Install the Mobile Guard antenna on the roof or on a mast pointing at the nearest operator base station.
- Connect the other end of the cable to the F adapter on the CRC9 and then to the corresponding port on the Olax MT80 router.
- Insert the SIM card of the mobile operator into the router and turn it on using the power button on the side.
- Adjust the antenna based on the maximum signal level that can be checked in the web interface of the router.
Characteristics of the antenna and cable products:
- 4G LTE antenna Mobile Guard for strengthening the signal of a mobile operator at a frequency of 900 MHz by 10 dB
- Mobile Guard RG-58 50 Ohm Coaxial Cable 10 meters long with F-connector, already connected to the antenna
- Pigtail (adapter) for connecting the 4G router to the antenna cable – F on CRC9
Regions of use:
It is recommended for use in the Zaporizhia, Dnipropetrovsk, Kherson, and Mykolaiv regions.
This internet kit provides stable and fast internet access in the field, making it ideal for use in rural and remote areas.
