4G LTE Cat.4 • MIMO • 2 External Antennas • USB Power

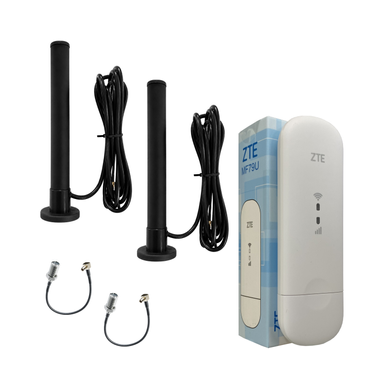

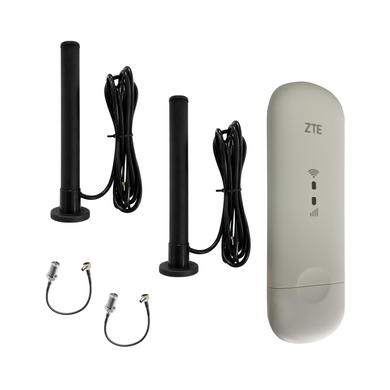

ZTE MF79U 4G Wi-Fi Kit + 2 Mobile Guard Mini Antennas
Internet kit based on the ZTE MF79U with two external Mobile Guard Mini antennas — a ready-to-use solution for mobile 4G Internet in a vehicle, while traveling, working, at a country house, and in other locations with mobile operator coverage.
ZTE MF79U supports LTE Cat.4 with download speeds up to 150 Mbps, creates a Wi-Fi network for connecting up to 10 devices, and has two TS9 ports for external antennas. Two Mobile Guard Mini antennas are connected through two included F-female → TS9 adapters.
LTE Cat.4 up to 150 Mbps MIMO 2× TS9 2× Mobile Guard Mini up to 9 dBi 650–2800 MHz
📶
LTE Cat.4 up to 150 Mbps
ZTE MF79U supports 4G LTE with download speeds up to 150 Mbps and upload speeds up to 50 Mbps.
📡
Two External Antennas
Two TS9 ports allow you to connect two Mobile Guard Mini antennas and use an external antenna system.
🔌
USB Power
MF79U can be powered from a compatible USB power source, mains adapter, or power bank.

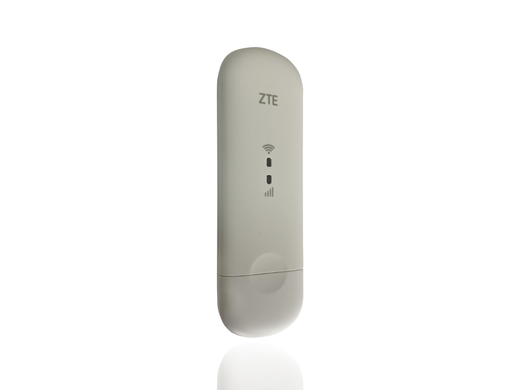

ZTE MF79U — Compact 4G LTE Wi-Fi Router
ZTE MF79U supports LTE Cat.4 and provides a stated maximum download speed of up to 150 Mbps and upload speed of up to 50 Mbps on 4G LTE FDD networks.
The device also works as a Wi-Fi router: when connected to USB power, it creates a wireless network for simultaneous connection of up to 10 compatible devices.
up to 150 Mbps stated maximum LTE FDD download speed
up to 10 devices on the Wi-Fi network
2× TS9 ports for two external antennas
Two Mobile Guard Mini Antennas for an External Antenna System
The kit is supplemented with two external Mobile Guard Mini antennas, which connect to the two TS9 ports of the ZTE MF79U.
Each antenna operates in the 650–2800 MHz range, has a stated gain of up to 9 dBi, a height of 18 cm, and is equipped with a 2-meter RG58 cable.
2× Mobile Guard Mini.
Gain up to 9 dBi for each antenna.
Operating range 650–2800 MHz.
2× RG58 cables, each 2 m long.
Compatibility with ZTE MF79U LTE Frequencies
The Mobile Guard Mini operating range of 650–2800 MHz covers the main LTE FDD frequencies specified for the ZTE MF79U: 800, 850, 900, 1800, 2100, and 2600 MHz.
800 / 850 MHz — within the antennas' operating range.
900 MHz — within the antennas' operating range.
1800 / 2100 MHz — within the antennas' operating range.
2600 MHz — within the antennas' operating range.
Two TS9 Ports — the Kit Is Already Ready for Connection
ZTE MF79U is equipped with two TS9 ports for connecting external antennas. The kit already includes 2 F-female → TS9 adapters.
Connection scheme: 2× Mobile Guard Mini → F connectors → 2× F-female / TS9 → 2× TS9 ZTE MF79U.
Two antennas, two cables, and two adapters are selected for simultaneous connection to both external antenna inputs of the router.
MIMO with Two External Antennas
ZTE MF79U has two antenna ports and supports MIMO technology. In this kit, both external antenna inputs are used simultaneously with two Mobile Guard Mini antennas.
That is why the kit includes two identical antennas and two separate TS9 adapters — one for each external antenna input.
2 external TS9 antenna inputs.
2 identical Mobile Guard Mini antennas.
2 independent RG58 cables.
2 F-female → TS9 adapters.
Mobile 4G Internet for Different Use Cases
🚗 Vehicle
Two Mobile Guard Mini antennas can be installed outside on a metal surface of the vehicle, while the compact ZTE MF79U can be powered from an appropriate USB power source inside.
🔋 Power Bank
USB power allows the ZTE MF79U to be used with a compatible power bank as a mobile Wi-Fi access point.
💻 Work and Travel
Up to 10 compatible smartphones, laptops, tablets, and other devices can be connected to the router's Wi-Fi network simultaneously.
🏠 Country House and Out-of-Town Locations
The kit can be used where Internet access is provided by the mobile operator's network.
Wi-Fi for up to 10 Devices
ZTE MF79U supports Wi-Fi 802.11 b/g/n and allows simultaneous connection of up to 10 devices to the wireless network.
Wi-Fi 802.11 b/g/n.
Up to 10 simultaneous connections.
4G LTE as the Internet source.
USB power for mobile use.
Kit and Main Specifications
| Router |
ZTE MF79U 4G LTE Cat.4 Wi-Fi. |
| Mobile Networks |
4G LTE, 3G, 2G. |
| LTE Category |
Cat.4. |
| LTE FDD Speed |
Download up to 150 Mbps, upload up to 50 Mbps. |
| LTE FDD |
B1 / B3 / B5 / B7 / B8 / B20(28). |
| LTE TDD |
B40 (B38 and B41). |
| Wi-Fi |
802.11 b/g/n. |
| Number of Devices |
Up to 10 simultaneous Wi-Fi connections. |
| External Antenna Ports |
2× TS9. |
| Antennas |
2× Mobile Guard Mini, up to 9 dBi, 650–2800 MHz, height 18 cm. |
| Antenna Cables |
2× RG58, each 2 m long, with F connectors. |
| Adapters |
2× F-female → TS9. |
| Antenna Technology |
MIMO. |
| Power |
Via USB. |
Connect Two Mobile Guard Mini Antennas in 4 Steps
The antennas and two TS9 adapters are already selected for the ZTE MF79U.
Install the Antennas
Place two Mobile Guard Mini antennas vertically on a clean metal surface.
Route the Cables
Route the two RG58 cables, each 2 m long, to the location of the router.
Connect TS9
Connect both antennas through two F-female → TS9 adapters to the two TS9 ports of the ZTE MF79U.
Connect Power
Connect the ZTE MF79U to USB power and connect the required devices to its Wi-Fi network.
Frequently Asked Questions
Are the Mobile Guard Mini antennas compatible with the ZTE MF79U?
Yes. The ZTE MF79U has two external TS9 antenna ports, and the kit includes two Mobile Guard Mini antennas and two F-female → TS9 adapters.
Are the TS9 adapters included in the kit?
Yes. The kit includes 2 F-female → TS9 adapters — one for each Mobile Guard Mini antenna.
Are both antenna ports used?
Yes. The kit includes two external antennas for simultaneous connection to the two TS9 ports of the ZTE MF79U.
Does the ZTE MF79U support MIMO?
Yes. MIMO technology support is specified for the ZTE MF79U, and two ports for external antennas are provided.
Are the Mobile Guard Mini frequencies compatible with the router?
The Mobile Guard Mini operating range is 650–2800 MHz and covers the LTE FDD frequencies specified for the ZTE MF79U: 800, 850, 900, 1800, 2100, and 2600 MHz.
What is the maximum 4G speed?
For LTE FDD, the stated maximum download speed is up to 150 Mbps and upload speed is up to 50 Mbps. Actual speed depends on the mobile operator, coverage, network load, and reception conditions.
Can the ZTE MF79U be powered from a power bank?
Yes. The ZTE MF79U operates via USB power, so it can be used with a compatible power bank with a USB output.
How many devices can be connected via Wi-Fi?
The ZTE MF79U supports simultaneous connection of up to 10 devices via Wi-Fi.
ZTE MF79U + Two External Mobile Guard Mini Antennas
The ZTE MF79U, two Mobile Guard Mini antennas, and two F-female → TS9 adapters are selected for use together. The kit combines LTE Cat.4 up to 150 Mbps, Wi-Fi for up to 10 devices, USB power, and connection of two external antennas through two TS9 ports.
