LTE CAT 18 • 2× TS9 • 2 external antennas
Novatel Inseego MiFi 8000L 4G Wi-Fi Kit + 2 Mobile Guard Mini Antennas
The mobile Internet kit based on the Novatel Inseego MiFi 8000L is designed for vehicles, crews, field use, service trips, mobile work, and other situations where autonomous access to 4G LTE is required.
MiFi 8000L supports LTE Advanced CAT 18 with a stated maximum download speed of up to 1.2 Gbps, features two TS9 ports for external antennas, dual-band Wi-Fi, and a 4400 mAh battery. Two Mobile Guard Mini antennas are already supplied with the required F-female → TS9 adapters.
LTE CAT 18 up to 1.2 Gbps 2× TS9 2× Mobile Guard Mini up to 9 dBi 650–2800 MHz 4400 mAh
⚡
LTE Advanced CAT 18
The stated maximum download speed is up to 1.2 Gbps, while upload speed is up to 150 Mbps.
📡
2× TS9 for Antennas
Two external antenna ports allow both Mobile Guard Mini antennas to be connected simultaneously using the included adapters.
🔋
4400 mAh Battery
Stated battery life of up to 24 hours makes the router convenient for long trips and mobile use.
High-Performance Mobile Router for Work on the Road
At the core of the kit is the Novatel Inseego MiFi 8000L with a Qualcomm Snapdragon X20 modem and support for LTE Advanced CAT 18.
The router is designed for mobile Internet access for laptops, smartphones, tablets, and other compatible devices. It can be used in a vehicle, moved between locations, or deployed as an autonomous Wi-Fi access point.
up to 1.2 Gbps stated maximum LTE download speed
up to 15 Wi-Fi wireless devices connected simultaneously
2.4 + 5 GHz dual-band Wi-Fi network
Two External Mobile Guard Mini Antennas Already Included

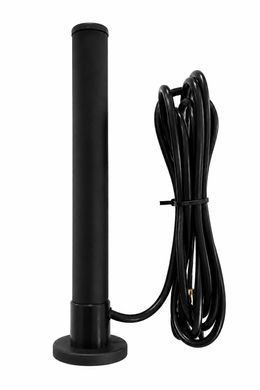

Two compact external Mobile Guard Mini antennas are connected to the MiFi 8000L. Each antenna operates in the 650–2800 MHz range, has a stated gain of up to 9 dBi, and is 18 cm high.
Each Mobile Guard Mini is equipped with a 2-meter RG58 cable. This configuration allows the antennas to be placed outside a vehicle or at another suitable reception point, while the router itself remains inside.
2× Mobile Guard Mini.
Up to 9 dBi each.
650–2800 MHz.
2× 2 m RG58 cable.
Two TS9 Ports — No Need to Select Adapters Separately
MiFi 8000L has two external TS9 antenna ports. This kit already includes 2 F-female → TS9 adapters — one for each Mobile Guard Mini antenna.
Ready connection: Mobile Guard Mini → F connector → F-female / TS9 → MiFi 8000L antenna port.
This allows you to get the router, two antennas, and the required adapters in one kit without having to search separately for compatible connectors.
For Mobile Groups, Vehicles, and Field Use
🚙 Vehicle and Crew
Two antennas can be installed outside on a metal surface, while the MiFi 8000L remains inside the vehicle and is used as a shared Wi-Fi access point.
📡 Field Use
An autonomous router with external antennas is suitable for organizing mobile Internet access in locations where a mobile operator's network is available.
🛣 Mobile Groups and Trips
The compact kit can be transported together with other equipment and used on different routes or at different locations.
💻 Remote Work
Laptops, smartphones, tablets, and other equipment can be connected to Wi-Fi for work outside a fixed office.
Dual-Band Wi-Fi for Multiple Devices
MiFi 8000L supports 802.11 a/b/g/n/ac standards and operates in the 2.4 and 5 GHz Wi-Fi bands.
Up to 15 devices can be connected simultaneously via Wi-Fi. A compatible device can also be connected via USB.
2.4 GHz Wi-Fi.
5 GHz Wi-Fi.
Up to 15 Wi-Fi devices.
Additional USB connection.
4400 mAh and Up to 24 Hours of Battery Life
The built-in 4400 mAh battery provides a stated operating time of up to 24 hours without recharging.
The router supports QuickCharge™ for fast charging. It can also use the MiFi 8000L battery charge to charge compatible mobile devices.
4400 mAh battery.
Stated battery life up to 24 hours.
QuickCharge™ support.
Ability to charge other devices.

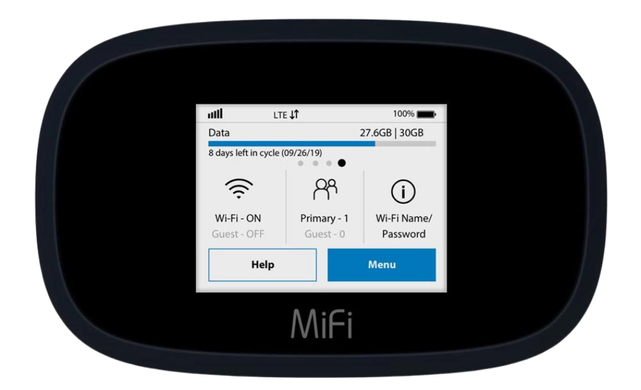

Control via 2.4" Touchscreen Display
MiFi 8000L is equipped with a 2.4-inch color touchscreen. The display allows you to view basic device information and use the available control functions.
For mobile use, this allows you to monitor the router without constantly connecting to a separate computer.
Kit and Main Specifications
| Router |
Novatel Inseego MiFi 8000L with two external TS9 antenna ports. |
| Mobile Network |
4G LTE Advanced CAT 18, HSPA+/UMTS. |
| Maximum Speed |
Stated up to 1.2 Gbps download and up to 150 Mbps upload. |
| Antennas |
2× Mobile Guard Mini, up to 9 dBi, operating range 650–2800 MHz, height 18 cm. |
| Antenna Cables |
2× RG58, 2 m long, with F connectors. |
| Adapters |
2× F-female → TS9 for connecting two Mobile Guard Mini antennas. |
| Wi-Fi |
802.11 a/b/g/n/ac, 2.4 and 5 GHz bands. |
| Device Connections |
Up to 15 devices via Wi-Fi and one compatible device via USB. |
| Battery |
4400 mAh, stated battery life up to 24 hours. |
| Display |
2.4" color touchscreen. |
| SIM Card |
4FF nano-SIM. |
| Dimensions |
113 × 71 × 19 mm. |
| Weight |
163 g. |
| Operating Temperature |
From -10°C to 55°C. |
Connect the Kit in 4 Steps
Two Mobile Guard Mini antennas and the required TS9 adapters are already selected for the MiFi 8000L.
Install the Antennas
Place the two Mobile Guard Mini antennas vertically on a clean metal surface.
Route the Cables
Route the two RG58 cables to the location of the router.
Connect TS9
F connector → F-female / TS9 → corresponding TS9 port on the MiFi 8000L.
Insert the SIM Card
Turn on the router and connect the required devices to its Wi-Fi network.
Frequently Asked Questions
Is the kit suitable for a vehicle?
Yes. Two Mobile Guard Mini antennas can be installed outside the vehicle on a metal surface, while the MiFi 8000L can be placed inside the vehicle and used as a mobile Wi-Fi access point.
Are TS9 adapters included in the kit?
Yes. The kit includes two F-female → TS9 adapters — one for connecting each Mobile Guard Mini antenna.
What is the maximum speed of the MiFi 8000L?
For LTE CAT 18, the stated maximum download speed is up to 1.2 Gbps and upload speed is up to 150 Mbps. Actual speed depends on the capabilities of the mobile network, operator, network load, coverage, and reception conditions.
Can the kit be used in field conditions?
Yes. MiFi 8000L is a portable battery-powered router, while two Mobile Guard Mini antennas allow the antennas to be placed at a suitable mobile signal reception point. The kit can be used wherever a compatible mobile operator network is available.
How many devices can be connected via Wi-Fi?
MiFi 8000L supports simultaneous connection of up to 15 Wi-Fi devices.
Is 5 GHz Wi-Fi supported?
Yes. MiFi 8000L supports Wi-Fi 802.11 a/b/g/n/ac and operates in the 2.4 and 5 GHz bands.
How long does the router operate on battery power?
The built-in battery capacity is 4400 mAh. The stated battery life is up to 24 hours.
Can the kit be used by several people?
Yes. Up to 15 devices can be connected to the MiFi 8000L via Wi-Fi simultaneously, so one mobile access point can be used by several users.
High-Speed Mobile LTE Kit with Two External Antennas
Novatel Inseego MiFi 8000L, two Mobile Guard Mini antennas, and two F-female → TS9 adapters are already selected for use together. LTE CAT 18, dual-band Wi-Fi, a 4400 mAh battery, and ready connection for two external antennas — all in one mobile kit.
Buy the Kit
Note: the kit may be equipped with a Novatel Inseego MiFi 8000L or Novatel Inseego MiFi 8800L router depending on the batch. After preparation and firmware, both models have the same functionality and operating characteristics within this kit.
