4G LTE • MIMO 2×2 • 2 external antennas • backup power
ERGO R023 4G Wi-Fi Kit + 2 Mobile Guard Mini Antennas
Internet kit based on the ERGO R023 with two external Mobile Guard Mini antennas — a ready-to-use solution for homes, offices, shops, warehouses, country houses, and other locations where mobile 4G Internet or backup network access is required.
ERGO R023 combines LTE Cat.4, 2.4 GHz Wi-Fi, two Ethernet ports, a 4000 mAh battery, and full MIMO 2×2 support. Two Mobile Guard Mini antennas connect to the router's two SMA Female ports via the included F-female → SMA Male adapters.
4G LTE Cat.4 up to 150 Mbps MIMO 2×2 2× Mobile Guard Mini up to 9 dBi 650–2800 MHz 4000 mAh
📡
MIMO 2×2
Two SMA Female ports on the router allow two external Mobile Guard Mini antennas to be used simultaneously in a MIMO configuration.
🔋
Backup Power
The removable 4000 mAh battery allows the router to continue operating when external power is unavailable.
🔌
4G + Ethernet
ERGO R023 can operate with a mobile SIM card and features a WAN/LAN port and a separate LAN port for wired connections.

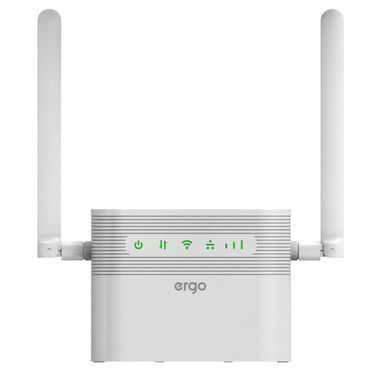

ERGO R023 — 4G Router for Primary or Backup Internet
ERGO R023 is equipped with a Cat.4 LTE modem with a stated maximum download speed of up to 150 Mbps and upload speed of up to 50 Mbps.
The router can use mobile Internet via a SIM card and a wired Ethernet connection. This allows it to be used as a primary access point or as part of a backup Internet connection setup.
up to 150 Mbps stated maximum LTE download speed
MIMO 2×2 two separate SMA ports for LTE antennas
2× Ethernet WAN/LAN and separate LAN port
Two Mobile Guard Mini Antennas for Full MIMO 2×2
ERGO R023 has two external SMA Female ports and supports MIMO 2×2. In this kit, two Mobile Guard Mini antennas are connected to them via two corresponding adapters.
Each Mobile Guard Mini operates in the 650–2800 MHz range, has a stated gain of up to 9 dBi, a height of 18 cm, and a 2-meter RG58 cable.
2× Mobile Guard Mini.
Gain up to 9 dBi each.
Operating range 650–2800 MHz.
2× 2 m RG58 cable.
Antennas Cover the LTE Frequencies of ERGO R023
ERGO R023 supports LTE on 900, 1800, and 2600 MHz. The Mobile Guard Mini operating range is 650–2800 MHz, so the antennas cover all specified LTE frequencies of this router.
900 MHz — supported by the router and within the antenna range.
1800 MHz — supported by the router and within the antenna range.
2600 MHz — supported by the router and within the antenna range.
650–2800 MHz — Mobile Guard Mini operating range.
Two SMA Ports — the Kit Is Already Ready to Connect

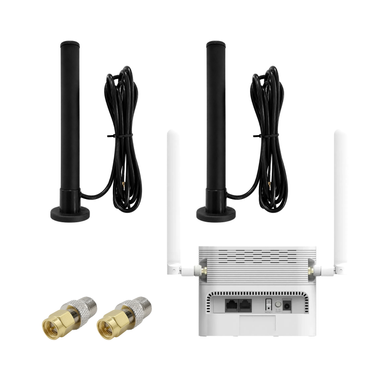

The kit includes 2 F-female → SMA Male adapters. They connect the F connectors of the Mobile Guard Mini cables to the two SMA Female ports on the ERGO R023.
Connection scheme: Mobile Guard Mini → F connector → F-female / SMA Male → SMA Female on ERGO R023.
Two antennas, two cables, and two adapters are already selected for the router's two external antenna ports.
For Home, Office, and Backup Network Access
🏠 Home and Country House
The router can distribute mobile 4G Internet via Wi-Fi and connect equipment via Ethernet.
🏢 Office and Shop
Work devices, POS equipment, computers, and other compatible equipment can be connected to the network.
🔋 Power Outages
The 4000 mAh battery allows the ERGO R023 to continue operating without external power.
📶 Out-of-Town Locations
Two external antennas can be placed at a suitable reception point and connected to the router's MIMO 2×2 ports.
2.4 GHz Wi-Fi and Wired Connection
ERGO R023 operates in the 2.4 GHz Wi-Fi band and supports 802.11 b/g/n standards with Wi-Fi speeds up to 300 Mbps.
Two Ethernet ports are provided for wired devices: a combined WAN/LAN port and a separate LAN port.
2.4 GHz Wi-Fi.
802.11 b/g/n.
WAN/LAN Ethernet.
Separate LAN Ethernet.
4000 mAh Battery — Internet Is Not Tied Only to a Power Outlet
ERGO R023 is equipped with a removable 4000 mAh battery. If external power is lost, the router can continue operating from the battery.
For stationary power, a 12 V / 1 A adapter is used and is included in the router's standard package.
Removable 4000 mAh battery.
Battery-powered operation.
External power 12 V / 1 A.
Suitable for backup Internet access.
SIM Card, SMS, and Traffic Monitoring
For mobile connectivity, ERGO R023 uses a micro-SIM (3FF) card.
The router's software features include SMS support, connection statistics, and monitoring of mobile data usage.
Kit and Main Specifications
| Router |
ERGO R023 with two external SMA Female antenna ports. |
| Mobile Network |
4G LTE Cat.4. |
| LTE Speed |
Stated up to 150 Mbps download and up to 50 Mbps upload. |
| LTE Frequencies |
900, 1800, and 2600 MHz. |
| MIMO |
MIMO 2×2 via two external SMA Female ports. |
| Antennas |
2× Mobile Guard Mini, up to 9 dBi, 650–2800 MHz, height 18 cm. |
| Antenna Cables |
2× RG58, 2 m long, with F connectors. |
| Adapters |
2× F-female → SMA Male. |
| Wi-Fi |
2.4 GHz, 802.11 b/g/n, up to 300 Mbps. |
| Ethernet |
1× WAN/LAN and 1× LAN. |
| SIM Card |
micro-SIM (3FF). |
| Battery |
Removable, 4000 mAh. |
| Power |
12 V / 1 A. |
| Additional Features |
SMS, connection statistics, and traffic usage monitoring. |
| Router Dimensions |
134 × 102.7 × 44.5 mm. |
| Warranty |
24 months. |
Connect Two Mobile Guard Mini Antennas in 4 Steps
Two antennas and two SMA adapters are already selected according to the external ports of the ERGO R023.
Install the Antennas
Place the two Mobile Guard Mini antennas vertically on a clean metal surface.
Route the Cables
Route the two RG58 cables to the location where the ERGO R023 is installed.
Connect SMA
F connector → F-female / SMA Male → corresponding SMA Female port on the router.
Insert the SIM
Insert the micro-SIM, turn on the ERGO R023, and connect the required devices to the network.
Frequently Asked Questions
Do two Mobile Guard Mini antennas work with the ERGO R023 MIMO 2×2?
Yes. ERGO R023 supports MIMO 2×2 and has two external SMA Female ports. The kit includes two Mobile Guard Mini antennas and two separate adapters for connection to both ports.
Are SMA adapters included in the kit?
Yes. The kit includes 2 F-female → SMA Male adapters — one for each Mobile Guard Mini antenna.
Are the antenna frequencies compatible with the ERGO R023?
Yes. ERGO R023 supports LTE on 900, 1800, and 2600 MHz, while Mobile Guard Mini antennas operate in the 650–2800 MHz range.
What is the maximum 4G speed?
For LTE Cat.4, the stated maximum download speed is up to 150 Mbps and upload speed is up to 50 Mbps. Actual speed depends on the operator, coverage, mobile network load, and reception conditions.
Can the ERGO R023 be used during a power outage?
Yes. The router is equipped with a removable 4000 mAh battery and can operate from the battery without external power.
Can equipment be connected via Ethernet?
Yes. ERGO R023 has a combined WAN/LAN port and a separate LAN port for wired connection of compatible equipment.
Can wired Internet be used?
Yes. The WAN/LAN port allows the use of a wired Ethernet connection, while 4G via a SIM card can be used as a mobile network access channel.
What SIM card format is required?
ERGO R023 uses a micro-SIM (3FF) card.
4G, MIMO 2×2, Two External Antennas, and Backup Power
ERGO R023, two Mobile Guard Mini antennas, and two F-female → SMA Male adapters are already selected for use together. The router provides 4G LTE, Wi-Fi, Ethernet, and autonomous battery operation, while the two external antennas connect to its MIMO 2×2 ports.
